Safety Primer Coating Foil

12+2+2µm Safety Primer Coating Foil for Battery System

12+2+2µm Safety Primer Coating Foil for Battery System has a composite layer: both a conductive carbon layer and solid electrolyte layer. Which can is designed and manufactured to suppress dendrite piercing, boost high-rate conductivity, cut electrolyte side reactions, and strengthens foil flexibility.

今すぐお問い合わせください

The 12+2+2µm Safety Primer Coating Foil is widely adopted in power batteries, energy storage power batteries, and consumer batteries. It is also compatible with sodium-ion batteries and high-voltage lithium battery systems.



1. Technical Parameters

Applicable Battery

Lithium-ion battery / Sodium-ion battery

Alloy

AA1100, AA1060, AA1235D

Temper

H18

Aluminum Foil Thickness

12µm

Coating Thickness

2µm (single side/double sides)

Aluminum Foil Width

300-1550mm

Coating System

Aqueous slurry

Surface Tension

≥64 dyn/cm

Tensile Strenght

≥230 MPa

Enlongation

≥3.0 %

Coating Surface Density

4.0±1 g/㎡

Total Surface Density

36.4±2.4 g/㎡

NMP Resistance

Baked at 130 °C for 10 min. Wiping 200 times with NMP, the coating remains intact without peeling.

Edge Trimming Defect

<100μm

Appearance



No dents or depressions, scratches, pinholes, pockmarks, edge notches, tower

shapes, arrows, end face burrs, impact injury; foil material bonding tape.

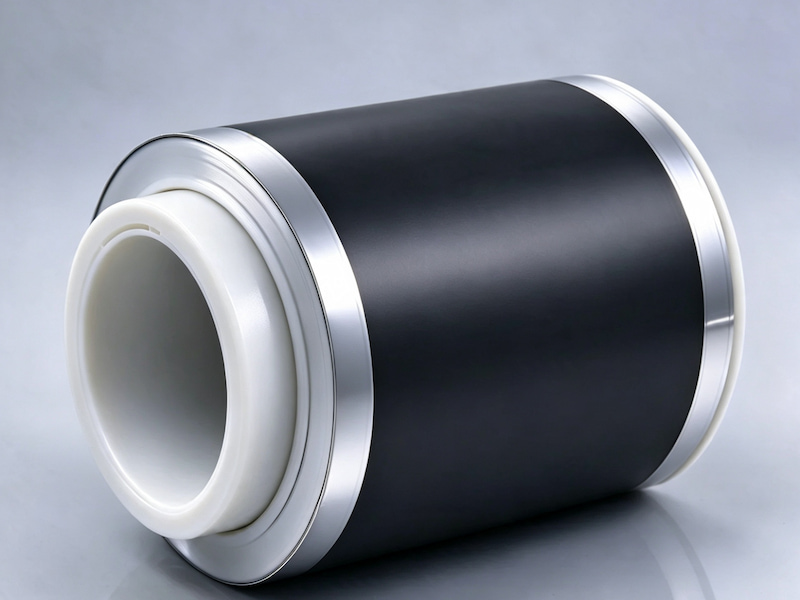

2. Product Image



3. Key Benefits of 12+2+2µm Safety Primer Coating Foil

  1. Lowers surface resistance, improving high-rate discharge performance.
  2. Solid electrolyte layer enhances ion transport while reducing side reactions between electrolyte and cathode materials and provides protection against dendrite penetration and external puncture.
  3. Carbon layer improves flexibility and tear resistance, preventing crack propagation in metal foil.
